dynamic-form-kit-react

This project is for demonstration purposes only.
If you need a fully functional form package for real applications, please consider using a more comprehensive and actively maintained form component library, and integrate it with other dynamic form solutions.
website: dynamic-form-kit-react

Overview

This is a React package for quickly generating form UIs using TypeScript.

• Generate a Dynamic Form through Dynamic Form Setting, with IntelliSense support during editing in IDEs such as VSCode.
• Generate Static Form files via commands. The UI behavior is consistent with the Dynamic Form, and it removes dependency on the package.
• Use the Dynamic Form Setting Editor to create and configure Dynamic Form Settings.

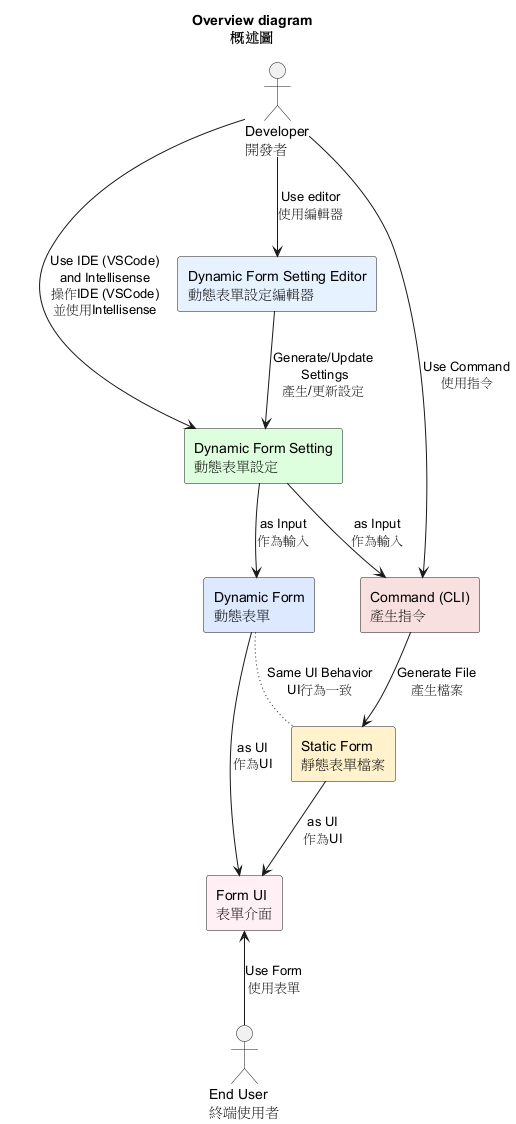

Overview Diagram:

Terminology List

General

Term	Description
Dynamic Form	A form UI generated dynamically through configuration
Static Form	A form UI with fixed components, not generated dynamically through configuration
Dynamic Form Setting	Configuration for dynamic forms, including assigned form components and related parameters for each field

Package Components

Term	Description
Dynamic Form Component Setting	Component configuration for form fields
Dynamic Form Validator Setting	Validator configuration for form fields
Dynamic Form Builder	A component that generates the form UI dynamically based on configuration
Form Component Library	A centralized collection of form components

Package User Interface

Term	Description
Static Form Generator Commands	Command set for generating static forms
Dynamic Form Setting Editor	UI for editing dynamic form settings
Dynamic Form Setting Template	A preset configuration set for fields, used in the settings editor

Package Architecture

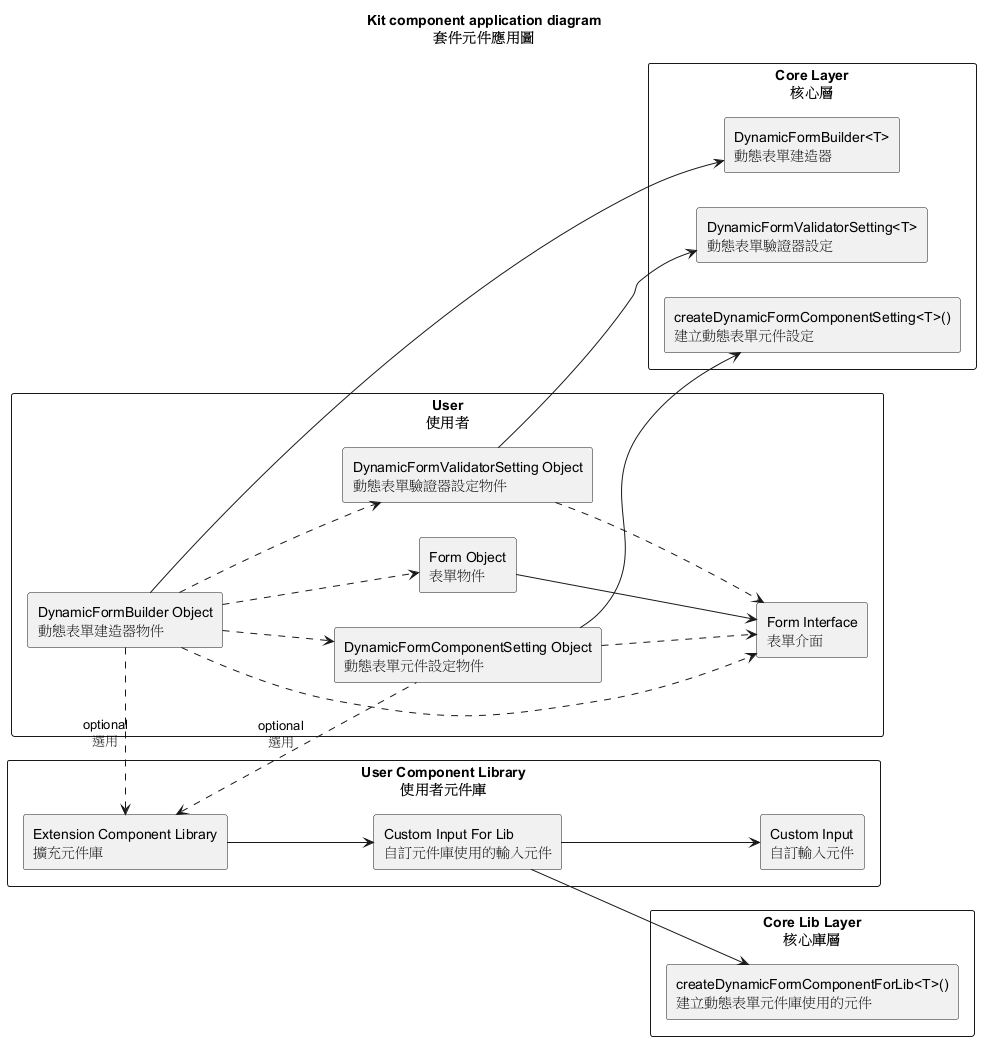

Application Diagram:

Dynamic Form Component Setting

Syntax

export const #objectName# = createDynamicFormComponentSetting<
  #FormInterface#,
  #ComponentLibraryObject(optional)#
>()((d) => ({
  #fieldSettings(optional)#
}));

#fieldSettings(optional)# Syntax
Each field uses the following syntax:

"#fieldName#": d({
  componentName: #componentName#,
  componentProps: #componentProps#
}),

Supports IntelliSense suggestions for:

• #fieldName#
• #componentName#
• #componentProps#: Component property settings

Custom Form Data Example:

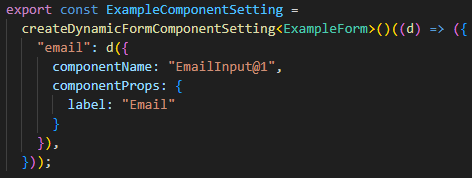

Configuration Example:

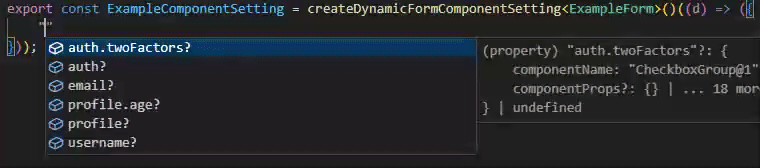

VS Code IntelliSense Example:

Dynamic Form Validator Setting

Syntax

const #objectName#: DynamicFormValidatorSetting<#FormInterface#> = {
  #fieldSettings(optional)#
};

#fieldSettings(optional)# Syntax
Each field uses the following syntax:

"#fieldName#": {
  validator: (fieldValue, parentObject, fieldKey, form) => {
    // Validation logic ...
    return {
      isError: boolean,
      message: string
    };
  },
  validGroupId?: string   // Optional validation group ID
}

If multiple fields share the same validGroupId, triggering validation in one field will validate all fields in that group.

Supports IntelliSense suggestions for:

• #fieldName#

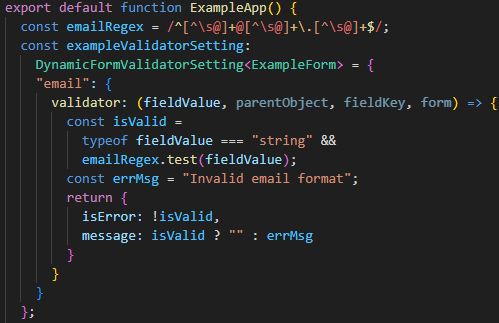

Configuration Example:

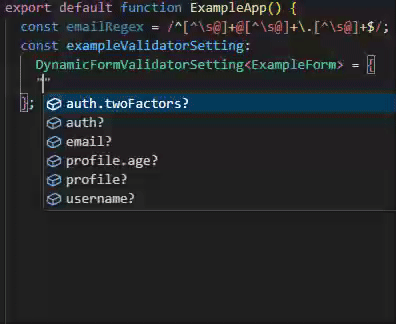

VS Code IntelliSense Example:

Dynamic Form Builder

Syntax

const #objectName# = <DynamicFormBuilder<#FormInterface#>
  formData={...}
  onChange={...}
  componentSetting={...}
  validatorSetting={...}
  actionButtons={...}         // Optional: submit, reset, etc.
  componentLibrary={...}      // Optional: custom component library
/>

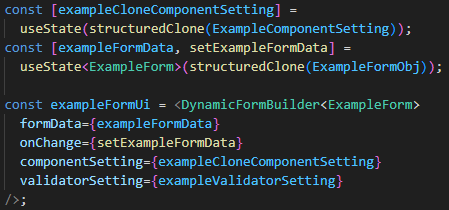

Simple Example:

Simple Example UI:

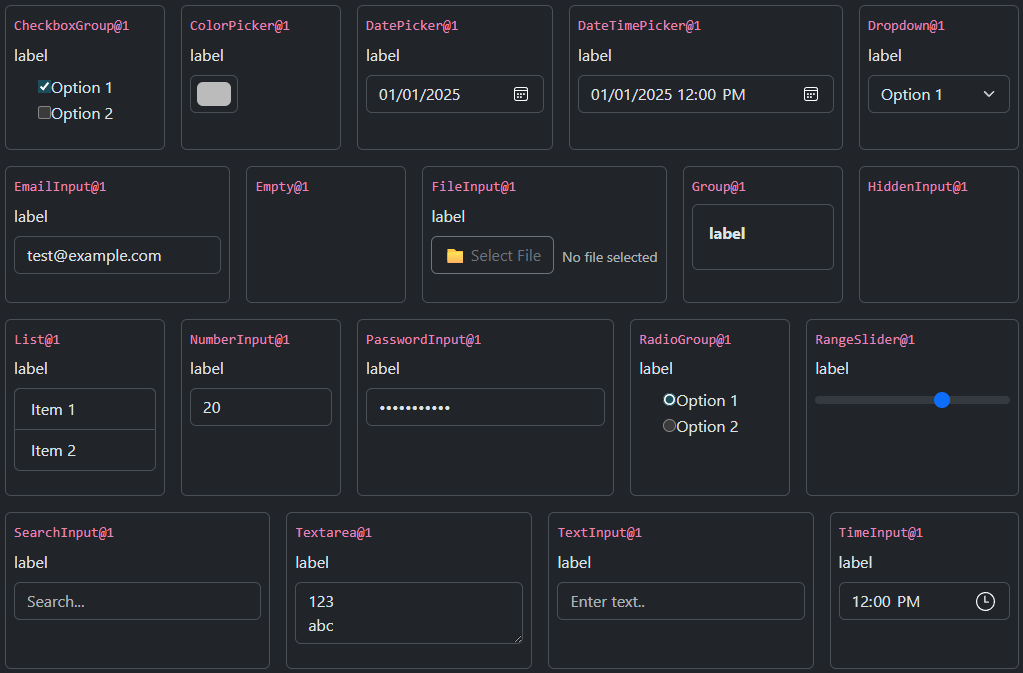

Form Component Library

A centralized collection of form components.
Built-in component library included.

Custom Extended Component Library

Syntax

const #objectName# = {
  #customComponentName#: #componentDefinition#,
  // ...more components
}

• #objectName#: Name of the custom component library
• #customComponentName#: The unique identifier for this component within the custom extended component library, used in the Dynamic Form Component Setting

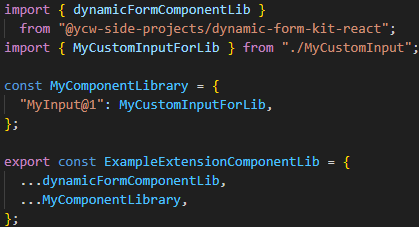

Example:

Custom Form Component

Syntax

export const #objectName# = createDynamicFormComponentForLib<#CustomComponentProps#>()({
  component: #CustomComponent#,
  props: {} as #CustomComponentProps#,
  propsKeys: #keys for generator#,
  demo: #DemoComponent#,
  propsEditor: #PropsEditorComponent#,   // Optional
  icon: #icon#   // Optional
})

Field Name	Purpose	Required
component	The actual React component used for rendering	Yes
props	Component props type for IntelliSense	Yes
propsKeys	Key props for Static Form generation (e.g. value, onChange, validation)	Yes
demo	Demo component shown in Dynamic Form Setting Editor	Yes
propsEditor	Custom props editor for configuring component props in Dynamic Form Setting Editor	Optional
icon	Custom icon shown in Dynamic Form Setting Editor	Optional

propsEditor specification: Use DynamicFormComponentStandardPropsEditor, DynamicFormComponentDynamicPropsTextEditor, or a custom React component with compatible type.

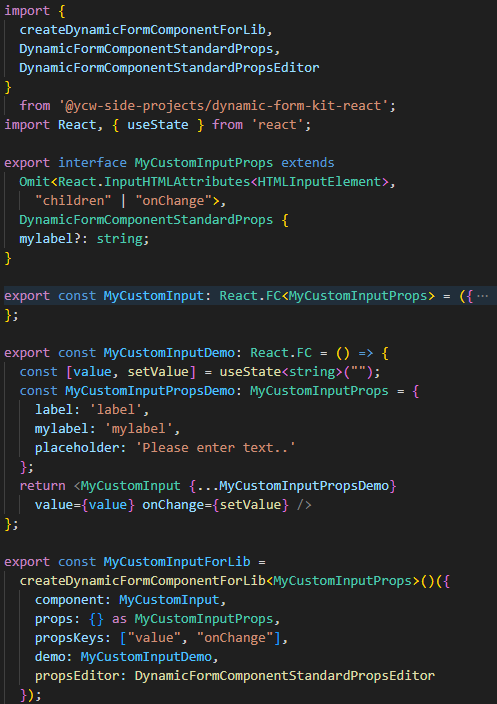

Example:

Multi-language (i18n)

Syntax

const getI18nLang_fromUrl = (): I18nLangType | null => { /* return I18nLangType|null */ };
const setI18nLang_toUrl = (lang: I18nLangType | null) => { /* custom code */ };

const TextProviderContent = () => {
  const controller = useI18nController();
  return <I18nTextProvider controller={controller}>
    <#App# controller={controller} />
  </I18nTextProvider>;
};

const ControllerProviderContent = () => {
  return <I18nControllerProvider
    useControllerHook={useDefaultI18nLangController} // Can be replaced with a custom hook
    options={{
      localStorageKey: '#custom key#',
      defaultLang: "en", // Custom default
      usingUrlLang: { getUrlLang: getI18nLang_fromUrl, setUrlLang: setI18nLang_toUrl } // Optional
    }}
  >
    <TextProviderContent />
  </I18nControllerProvider>;
};

Block	Purpose
getI18nLang_fromUrl / setI18nLang_toUrl	Custom URL read/write for language synchronization
<I18nControllerProvider>	Creates a global i18n controller (language state, localStorage, URL sync)
useControllerHook	Specifies the language controller hook
options.localStorageKey	Key used in localStorage for language settings
options.defaultLang	Default language using I18nLangType (e.g. "en")
options.usingUrlLang	Optional URL-based language sync mechanism
<I18nTextProvider>	Provides actual text mappings (dictionary lookup)
controller	Language controller, required for I18nTextProvider, Dynamic Form Setting Editor, and Static Form

• useControllerHook: There is a default useDefaultI18nLangController that can be used.

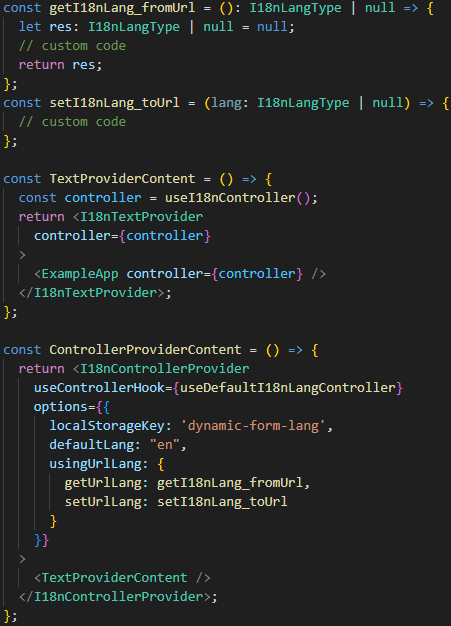

Example:

Dynamic Form Setting Editor

Using the editor:
Use <DynamicFormHome #componentLibMap(optional)# /> to open the editor.

• #componentLibMap#: Object in Map<string, ComponentLibForEditor> format. Use getDefaultMapComponentLibForEditor() to get default libraries.

Syntax

const #objectName# = <DynamicFormHome
  componentLibMap={#Component Library Map#}
  langController={#II18nLangController#}
/>

• #Component Library Map#: A Map object that maps string to Form Component Library
• #II18nLangController#: II18nLangController object

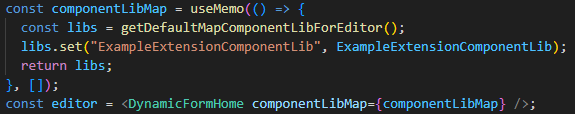

Example:

Dynamic Form Setting Editor UI description:

• See in the UI

Static Form Generator Commands

Generate static forms:

npx gen-static-form --source "#source dir#" --target "#target dir#"

• "#source dir#": Top folder containing Dynamic Form Component Setting
• "#target dir#": Target folder for generated Static Form, will overwrite but not delete

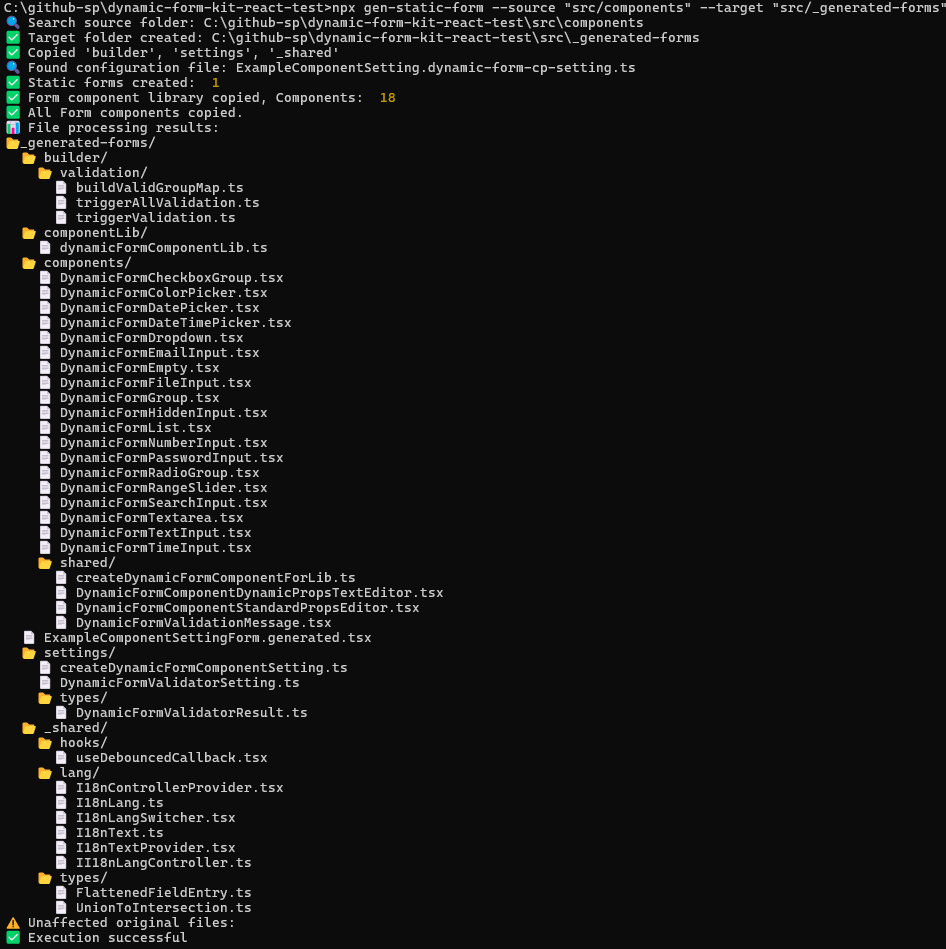

Example:

Notes

• IDE used: VS Code; other IDEs are not tested.
